MICRO 100

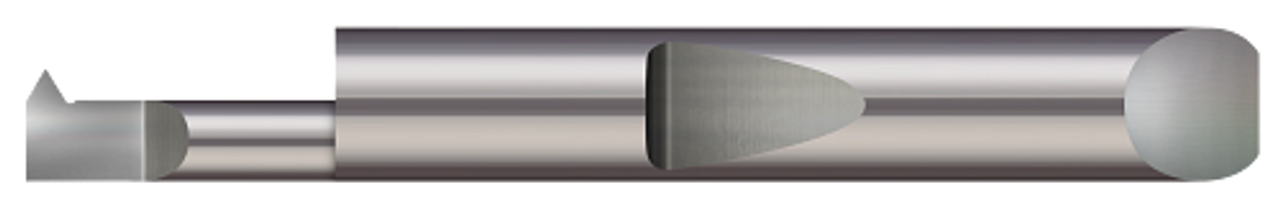

Quick Change - Left Hand - 0.1560" (5/32) Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0350" Projection x 1.50" (1-1/2) OAL x 0.002" Corner Radius #16-56
- SKU:
- QITL-140500
- MPN:
- QITL-140500
- Availability:
- 21
- Shipping:
- Calculated at Checkout
Description
0.1560" (5/32) Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0350" Projection x 0.1875" (3/16) Shank DIA x 1.50" (1-1/2) Overall Length x 0.002" Corner Radius #16-56 - Carbide UN Thread Left Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.1560" (5/32) |
Head Width: |
0.140" (9/64) |
Hand Direction: |
left hand |
Coating: |
UN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0350" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0462" |
Offset: |
0.020" |
Corner Radius: |
0.002" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.1000" |
Overall Length: |
1.50" (1-1/2) |
Thread Size: |
16-56 |
TPI: |
16-56 |
Metric: |
N |
