MICRO 100

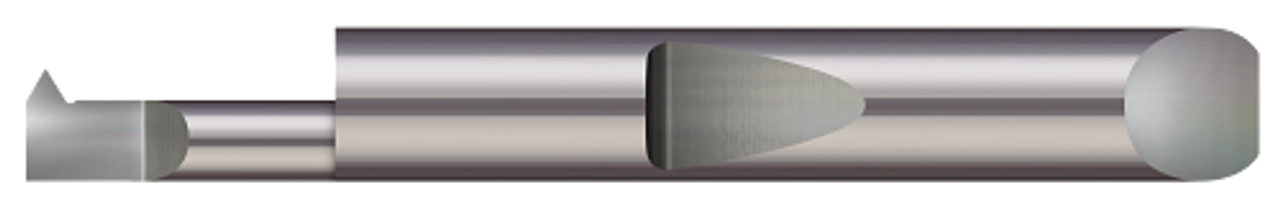

Quick Change - Left Hand - 0.1360" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0300" Projection x 1.50" (1-1/2) OAL x 0.002" Corner Radius #20-56
- SKU:
- QITL-120500
- MPN:
- QITL-120500
- Availability:
- 9
- Shipping:
- Calculated at Checkout
Description
0.1360" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0300" Projection x 0.1875" (3/16) Shank DIA x 1.50" (1-1/2) Overall Length x 0.002" Corner Radius #20-56 - Carbide UN Thread Left Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.1360" |
Head Width: |
0.120" |
Hand Direction: |
left hand |
Coating: |
UN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0300" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0262" |
Offset: |
0.017" |
Corner Radius: |
0.002" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.0850" |
Overall Length: |
1.50" (1-1/2) |
Thread Size: |
20-56 |
TPI: |
20-56 |
Metric: |
N |
