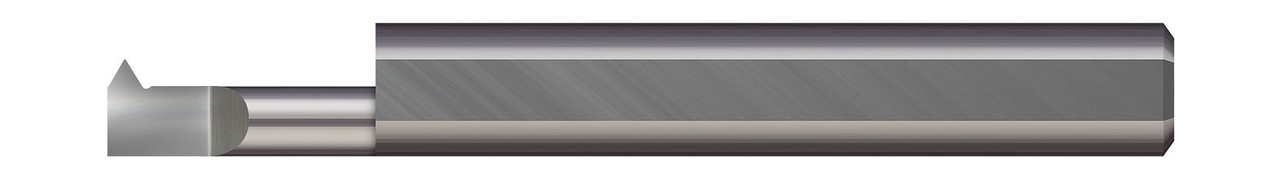

LEFT HAND - 0.3200" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.0870" TOOTH WIDTH X 0.0750" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #10-32,ITL-3201000

SKU:
ITL-3201000
MPN:
ITL-3201000
Availability:
21
Shipping:
Calculated at Checkout
$64.30

Description

0.3200" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.0870" TOOTH WIDTH X 0.0750" PROJECTION X 0.3750" (3/8) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0020" RADIUS #10-32 - CARBIDE UN THREAD LEFT HAND,ITL-3201000
View AllClose

Additional Information

Min Bore Diameter:
0.3420"
Head Width:
0.320"
Hand Direction:
left hand
Coating:
UN
Max Bore Depth:
1.000" (1)
Projection:
0.0750"
Shank Diameter:
0.3750" (3/8)
Centerline Offset:
0.1325"
Offset:
0.043"
Radius:
0.0020"
Angle per Side:
30
Included Angle:
60
Face Dimension:
0.188" (3/16)
Neck Diameter:
0.2400"
Overall Length:
2.50" (2-1/2)
Split Length:
0.210"
Thread Size:
8-40
Tooth Width:
0.0870"
TPI:
8-40
Metric:
N
