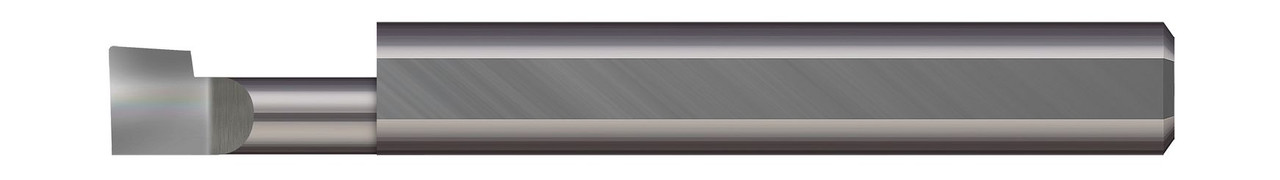

MICRO 100
LEFT HAND - 0.2900" MIN BORE DIA X 1.500" (1-1/2) MAX BORE DEPTH X 0.2000" TOOTH WIDTH X 0.0720" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0060" RADIUS - ALTIN COATED,BBL-2901500X
- SKU:
- BBL-2901500X
- MPN:
- BBL-2901500X
- Availability:
- 55
- Shipping:
- Calculated at Checkout
Description
0.2900" MIN BORE DIA X 1.500" (1-1/2) MAX BORE DEPTH X 0.2000" TOOTH WIDTH X 0.0720" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0060" RADIUS - CARBIDE BORING STANDARD LEFT HAND, ALTIN COATED,BBL-2901500X
View AllClose
Additional Information
Min Bore Diameter: |
0.3100" |
Head Width: |
0.290" |
Hand Direction: |
left hand |
Coating: |
AlTiN |
Max Bore Depth: |
1.500" (1-1/2) |
Projection: |
0.0720" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1338" |
Radius: |
0.0060" |
Face Dimension: |
0.156" (5/32) |
Neck Diameter: |
0.2180" (7/32) |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.220" |
Tooth Width: |
0.2000" |
Metric: |
N |
