MICRO 100

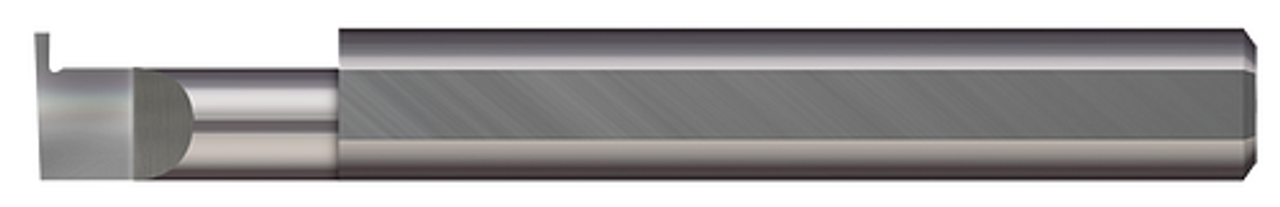

Left Hand - 0.2720" Min Bore DIA x 0.625" (5/8) Max Bore Depth x 0.0300" Tooth Width x 0.0500" Projection x 2.50" (2-1/2) OAL
- SKU:
- RRL-030-10
- MPN:
- RRL-030-10
- Availability:
- 17
- Shipping:
- Calculated at Checkout
Description
0.2720" Min Bore DIA x 0.625" (5/8) Max Bore Depth x 0.0300" Tooth Width x 0.0500" Projection x 0.2500" (1/4) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide Retaining Ring Grooving Left Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.2720" |
Head Width: |
0.250" (1/4) |
Hand Direction: |
left hand |
Coating: |
UN |
Max Bore Depth: |
0.625" (5/8) |
Projection: |
0.0500" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.1250" (1/8) |
Face Dimension: |
0.125" (1/8) |
Neck Diameter: |
0.1950" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.150" |
Tooth Width: |
0.0300" |
Metric: |
N |
