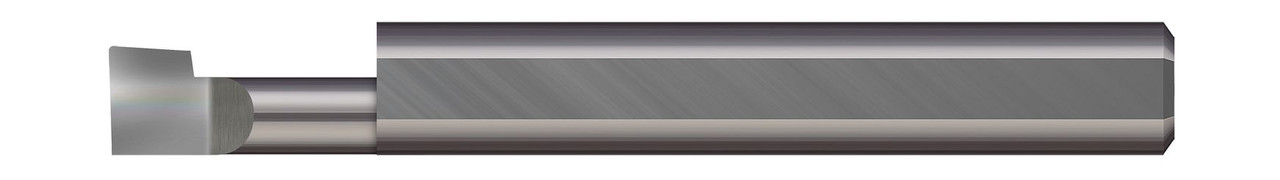

MICRO 100
LEFT HAND - 0.1800" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.1500" TOOTH WIDTH X 0.0450" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0060" RADIUS - TIN COATED,BBL-180600G
- SKU:
- BBL-180600G
- MPN:
- BBL-180600G
- Availability:
- 22
- Shipping:
- Calculated at Checkout
Description
0.1800" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.1500" TOOTH WIDTH X 0.0450" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0060" RADIUS - CARBIDE BORING STANDARD LEFT HAND, TIN COATED,BBL-180600G
View AllClose
Additional Information
Min Bore Diameter: |
0.1960" (5 mm) |
Head Width: |
0.180" |
Hand Direction: |
left hand |
Coating: |
TiN |
Max Bore Depth: |
0.600" |
Projection: |
0.0450" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.0550" |
Radius: |
0.0060" |
Face Dimension: |
0.125" (1/8) |
Neck Diameter: |
0.1350" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.175" |
Tooth Width: |
0.1500" |
Metric: |
N |
