MICRO 100

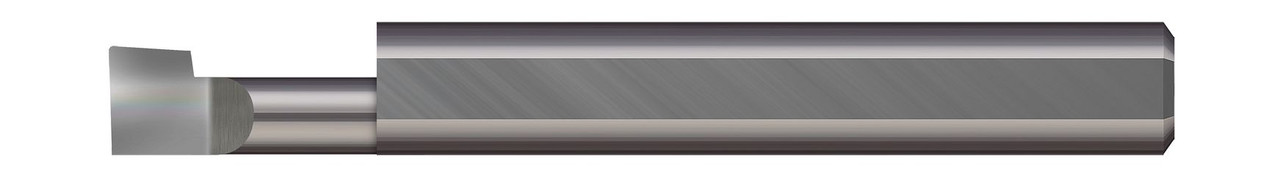

LEFT HAND - 0.0600" MIN BORE DIA X 0.200" MAX BORE DEPTH X 0.0700" TOOTH WIDTH X 0.0150" (1/64) PROJECTION X 1.50" (1-1/2) OVERALL LENGTH X 0.0030" RADIUS - ALTIN COATED,BBL-060200X
- SKU:
- BBL-060200X
- MPN:
- BBL-060200X
- Availability:
- 31
- Shipping:
- Calculated at Checkout
Description
0.0600" MIN BORE DIA X 0.200" MAX BORE DEPTH X 0.0700" TOOTH WIDTH X 0.0150" (1/64) PROJECTION X 0.1250" (1/8) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH X 0.0030" RADIUS - CARBIDE BORING STANDARD LEFT HAND, ALTIN COATED,BBL-060200X
View AllClose
Additional Information
Min Bore Diameter: |
0.0700" |
Head Width: |
0.060" |
Hand Direction: |
left hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.200" |
Projection: |
0.0150" (1/64) |
Shank Diameter: |
0.1250" (1/8) |
Centerline Offset: |
-0.0025" |
Radius: |
0.0030" |
Face Dimension: |
0.063" (1/16) |
Neck Diameter: |
0.0450" |
Overall Length: |
1.50" (1-1/2) |
Split Length: |
0.085" |
Tooth Width: |
0.0700" |
Metric: |
N |
