Mitutoyo

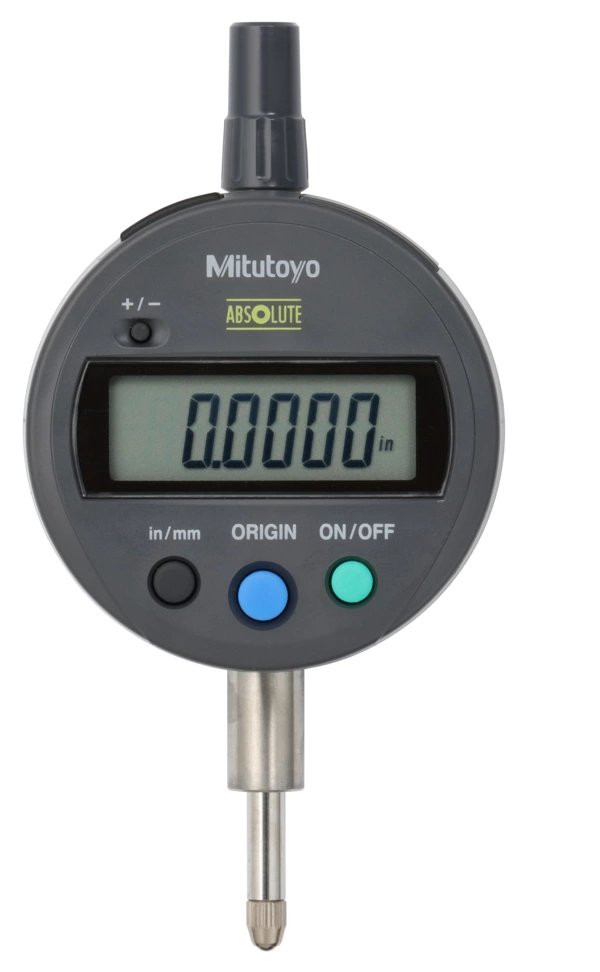

Digital Indicator ID-S ASME/ANSI Type Inch/Metric, 0.5", 0.0005", Lug Back Plate|Mitutoyo-543-783
- SKU:
- MITAM1-543-783
- Shipping:
- Calculated at Checkout
Additional Information
Digital/Analog: |
Digital |
Inch-Metric: |
Inch/Metric |
Model: |
ID-S1012EX2 |
Range: |
0.5/12.7 mm |
Digital step: |
0.0005/0.01 mm |
Max. Permissible Erro: |
±0.001/0.02 mm |
H MPE (Hysteresis): |
0.001/0.02 mm |
R MPE (Repeatability): |
0.0005/0.01 mm |
Measuring force MPL: |
?1.5 N |
Protection: |
IP42 |
Type: |
ASME/ANSI/AGD Standard |
Mass: |
150 g |
Display: |
LCD, character height 9 mm |
Max. response speed: |
Unlimited |
Alarm: |
Low voltage, sensor error, ABS data composition error |
Stem ?: |
9.52 mm |
Contact point: |
Carbide ball, thread: No.4-48UNF |
Power supply: |
1 battery SR44 |
Battery life: |
Approx. 18000 hours (0.001 mm type), approx. 20000 hours (0.01 mm type) |
Remarks: |
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required. |
Digimatic data output: |
Yes |
ON/OFF: |
Yes |
ORIGIN (ABS-Zero): |
Yes |
Counting direction switchable: |
Yes |
Inch/Metric switchable: |
Yes |
Digital Scale: |
Electrostatic capacitance type absolute linear encoder |
