Mitutoyo

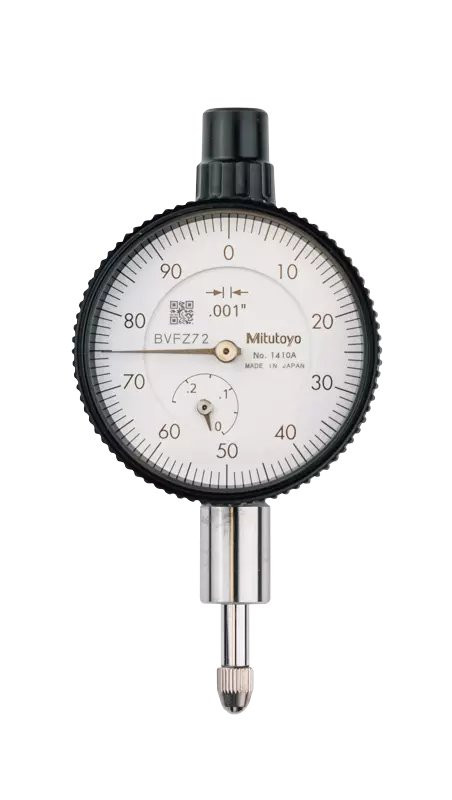

Dial Gauge, Lug Back, ANSI/AGD Type 0.25", 0.001"|Mitutoyo-1410A
- SKU:
- MITAM1-1410A
- Shipping:
- Calculated at Checkout
Additional Information
Digital/Analog: |
Analog |
Inch-Metric: |
Inch |
Range: |
0,25 |
Range per rev.: |
0,1 |
Dial reading: |
0-100 |
Graduation: |
0,001 |
H MPE (Hysteresis): |
0,0002 |
R MPE (Repeatability): |
±0,0002 |
MPE first one revolution: |
±0,001 |
MPE first 2 1/2 revolutions: |
±0,001 |
Type: |
ANSI/AGD Standard |
Measuring force: |
0,4-1,4 N |
Mass: |
83 g |
Stem: |
9.52 mm / 0.375 |
Contact point: |
Carbide tipped, thread: 4-48UNF |
Continuous dial: |
Yes |
