TITAN USA

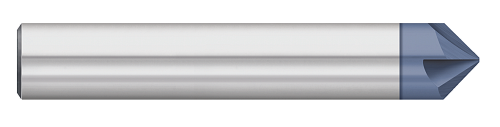

0.3125" (5/16) Shank DIA x 100° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0600" Tip DIA Carbide Tipped Off Chamfer Mill, 4 Flutes, AlTiN Coated
- SKU:
- TC87820
- MPN:
- TC87820
- Shipping:
- Calculated at Checkout
Description
0.3125" (5/16) Shank DIA x 100° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0600" Tip DIA Carbide Tipped Off Chamfer Mill, 4 Flutes, AlTiN Coated
View AllClose
Additional Information
Coating: |
ALTIN |
Cutter Diameter: |
0.3125 (5/16) |
Tip: |
0.06 |
Flutes: |
4 |
Length of Cut: |
0.106 |
Shank Diameter: |
0.3125 (5/16) |
Theoretical Tip Length: |
0.025 |
Included Angle: |
100 |
Overall Length: |
2.5000 (2-1/2) |
Angle per Side: |
50 |
Substrate: |
carbide |
Metric: |
N |
