TITAN USA

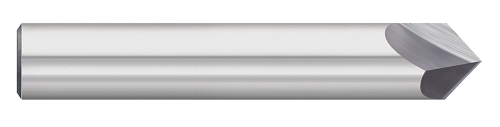

0.2500" (1/4) Shank DIA x 90° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0100" Tip DIA Carbide Pointed Chamfer Mill, 2 Flutes, Uncoated
- SKU:
- TC85128
- MPN:
- TC85128
- Shipping:
- Calculated at Checkout
Description
0.2500" (1/4) Shank DIA x 90° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0100" Tip DIA Carbide Pointed Chamfer Mill, 2 Flutes, Uncoated
View AllClose
Additional Information
Coating: |
UNCOATED |
Cutter Diameter: |
0.2500 (1/4) |
Tip: |
0.01 |
Flutes: |
2 |
Length of Cut: |
0.1250 (1/8) |
Shank Diameter: |
0.2500 (1/4) |
Included Angle: |
90 |
Overall Length: |
2.5000 (2-1/2) |
Angle per Side: |
45 |
Substrate: |
carbide |
Metric: |
N |
