HARVEY TOOL

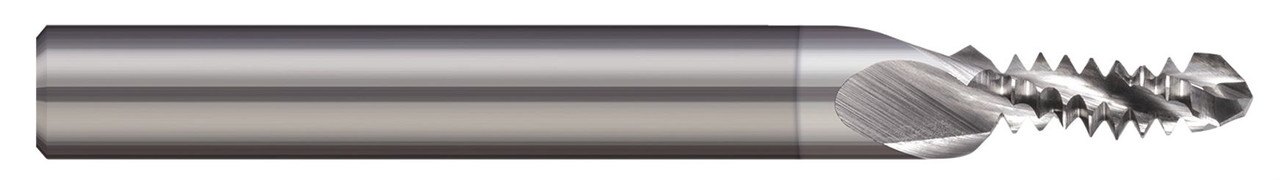

0.2013" DRILL DIAMETER X 0.7154" LENGTH OF CUT MULTI-FORM 1/4-20 - 3 FL, 820644
- SKU:
- 820644
- Shipping:
- Calculated at Checkout
Description
0.2152" DRILL DIAMETER X 0.7078" LENGTH OF CUT CARBIDE MULTI-FORM 1/4-28 COMBINATION DRILL/THREAD MILL, 3 FLUTES
View AllClose
Additional Information
Cutter Diameter: |
0.1800" |
Drill Diameter: |
0.2013" |
Minor Diameter: |
0.1172" |
Length of Cut: |
0.7154" |
Drill Length: |
0.0500" |
Overall Length: |
2.5000" (2-1/2) |
End Length: |
0.1168" |
Chamfer Length: |
0.0394" |
Angle per Side: |
45 |
Included Angle: |
90 |
Point Angle: |
130 |
Secondary Point Angle: |
90 |
Flutes: |
3" |
LOC Multiple: |
(3x) |
Size: |
1/4-20 |
Shank Diameter: |
0.3750" (3/8) |
Metric: |
N |
Coating: |
UN |
Weldon Flat: |
N |
