TITAN USA

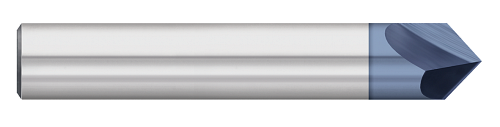

0.1875" (3/16) Shank DIA x 90° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0100" Tip DIA Carbide Pointed Chamfer Mill, 2 Flutes, AlTiN Coated
- SKU:
- TC85326
- MPN:
- TC85326
- Shipping:
- Calculated at Checkout
Description
0.1875" (3/16) Shank DIA x 90° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0100" Tip DIA Carbide Pointed Chamfer Mill, 2 Flutes, AlTiN Coated
View AllClose
Additional Information
Coating: |
ALTIN |
Cutter Diameter: |
0.1875 (3/16) |
Tip: |
0.01 |
Flutes: |
2 |
Length of Cut: |
0.094 |
Shank Diameter: |
0.1875 (3/16) |
Included Angle: |
90 |
Overall Length: |
2.5000 (2-1/2) |
Angle per Side: |
45 |
Substrate: |
carbide |
Metric: |
N |
