TITAN USA

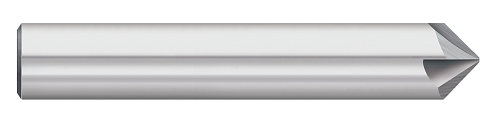

0.1875" (3/16) Shank DIA x 100° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0300" Tip DIA Carbide Tipped Off Chamfer Mill, 4 Flutes, Uncoated
- SKU:
- TC87757
- MPN:
- TC87757
- Shipping:
- Calculated at Checkout
Description
0.1875" (3/16) Shank DIA x 100° Included Angle x 2.5000" (2-1/2) Overall Length X 0.0300" Tip DIA Carbide Tipped Off Chamfer Mill, 4 Flutes, Uncoated
View AllClose
Additional Information
Coating: |
UNCOATED |
Cutter Diameter: |
0.1875 (3/16) |
Tip: |
0.03 |
Flutes: |
4 |
Length of Cut: |
0.066 |
Shank Diameter: |
0.1875 (3/16) |
Theoretical Tip Length: |
0.013 |
Included Angle: |
100 |
Overall Length: |
2.5000 (2-1/2) |
Angle per Side: |
50 |
Substrate: |
carbide |
Metric: |
N |
