HARVEY TOOL

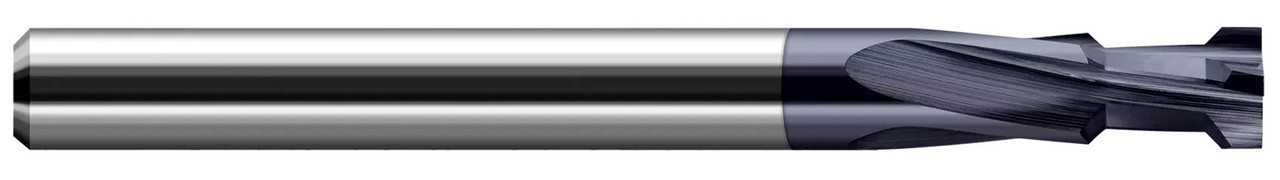

0.1350" MAX OPENING WIDTH X 0.1250 (1/8)" SHANK DIA X 90° INCLUDED - 4 FL - ALTIN COATED, 955208-C3
- SKU:
- 955208-C3
- Shipping:
- Calculated at Checkout
Description
0.1350" MAX OPENING WIDTH X 0.1250 (1/8)" SHANK DIA X 90° INCLUDED CARBIDE PLATE CHAMFER, 4 FLUTES, ALTIN COATED
View AllClose
Additional Information
Minor Diameter: |
0.0910" (2.3 mm) |
Overall Length: |
1.5000" (1-1/2) |
End to Center: |
0.1080" |
Min Opening Width: |
0.1040" |
End Length: |
0.0400" |
Chamfer Length: |
0.0220" |
Radius: |
0.0060" |
Angle per Side: |
45 |
Included Angle: |
90 |
Flutes: |
4" |
Max Opening Width: |
0.1350" |
Shank Diameter: |
0.1250" (1/8) |
Metric: |
N |
Coating: |
C3 |
