MICRO 100

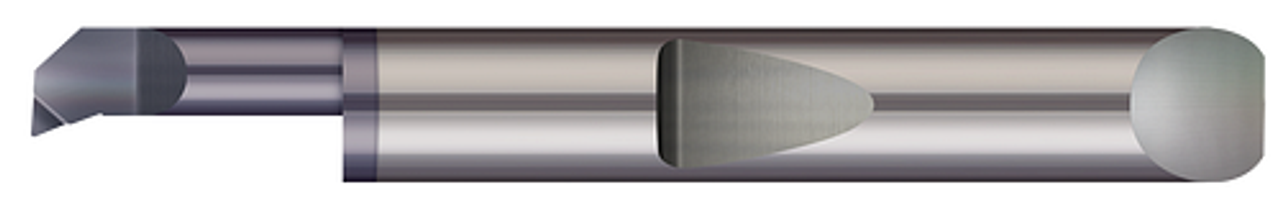

0.0900" Min Bore DIA x 0.200" Max Bore Depth x 0.0150" (1/64) Projection x 0.1875" (3/16) Shank DIA x 1.50" (1-1/2) Overall Length x 0.004" Corner Radius - Carbide Quick Change - Top Rake Boring Standard Right Hand, AlTiN Coated, QBT4-080200X
- SKU:
- QBT4-080200X
- Shipping:
- Calculated at Checkout
Additional Information
Min Bore Diameter: |
0.0900" |
Head Width: |
0.080" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.200" |
Projection: |
0.0150" (1/64) |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
-0.0138" |
Corner Radius: |
0.004" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.0650" |
Overall Length: |
1.50" (1-1/2) |
Metric: |
N |
