MICRO 100

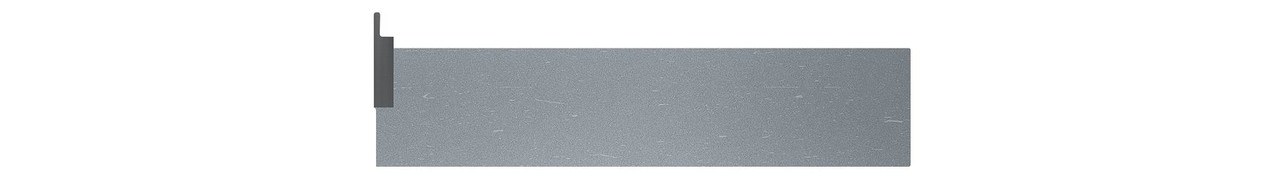

0.0800" BRAZED INSERT WIDTH X 0.2700" PROJECTION X 0.7500" (3/4) SHANK HEIGHT X 4.00" (4) OVERALL LENGTH X 0.0400" RADIUS - CARBIDE TIPPED BRAZED GR-F STYLE,GR-080F
- SKU:
- GR-080F
- MPN:
- GR-080F
- Availability:
- 15
- Shipping:
- Calculated at Checkout
Description
0.0800" BRAZED INSERT WIDTH X 0.2700" PROJECTION X 0.7500" (3/4) SHANK HEIGHT X 4.00" (4) OVERALL LENGTH X 0.0400" RADIUS - CARBIDE TIPPED BRAZED GR-F STYLE,GR-080F
View AllClose
Additional Information
Head Width: |
1.080" |
Coating: |
UN |
Max Bore Depth: |
0.810" |
Projection: |
0.2700" |
Radius: |
0.0400" |
Overall Length: |
4.00" (4) |
Shank Height: |
0.3750" (3/8) |
Shank Width: |
0.7500" (3/4) |
Tooth Width: |
0.0800" |
Metric: |
N |
