HARVEY TOOL

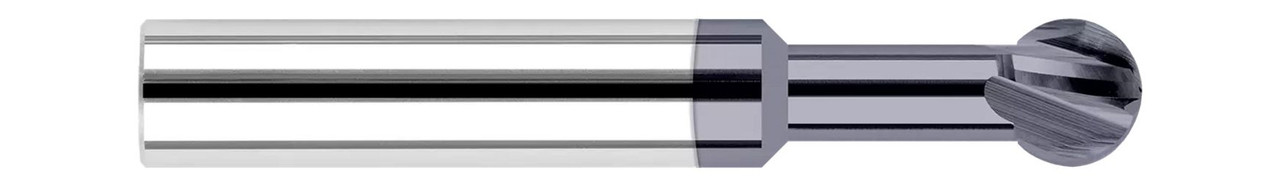

0.0469 (3/64)" CUTTER DIA X 0.1560 (5/32)" NECK LENGTH X 270° WRAP ANGLE - 2 FL, 23203

SKU:
23203
Shipping:
Calculated at Checkout
  • 0.0469 (3/64)" CUTTER DIA X 0.1560 (5/32)" NECK LENGTH X 270° WRAP ANGLE - 2 FL, 23203
  • 0.0469 (3/64)" CUTTER DIA X 0.1560 (5/32)" NECK LENGTH X 270° WRAP ANGLE - 2 FL, 23203
$75.60

Description

0.0469 (3/64)" CUTTER DIA X 0.1560 (5/32)" NECK LENGTH X 270° CARBIDE UNDERCUTTING END MILL, 2 FLUTES
View AllClose

Additional Information

Cutter Diameter:
0.0469" (3/64)
Neck Diameter:
0.0290"
Length of Cut:
0.0400"
Neck Length:
0.1560" (5/32)
Overall Reach:
0.1960"
Overall Length:
1.5000" (1-1/2)
Radius:
0.0234"
Wrap Angle:
270
Neck Angle:
0
Flutes:
2"
Type:
I
Shank Diameter:
0.1250" (1/8)
Metric:
N
Coating:
UN
